Termination & Splice Boxes
Product code: FX-OFDK-008-K

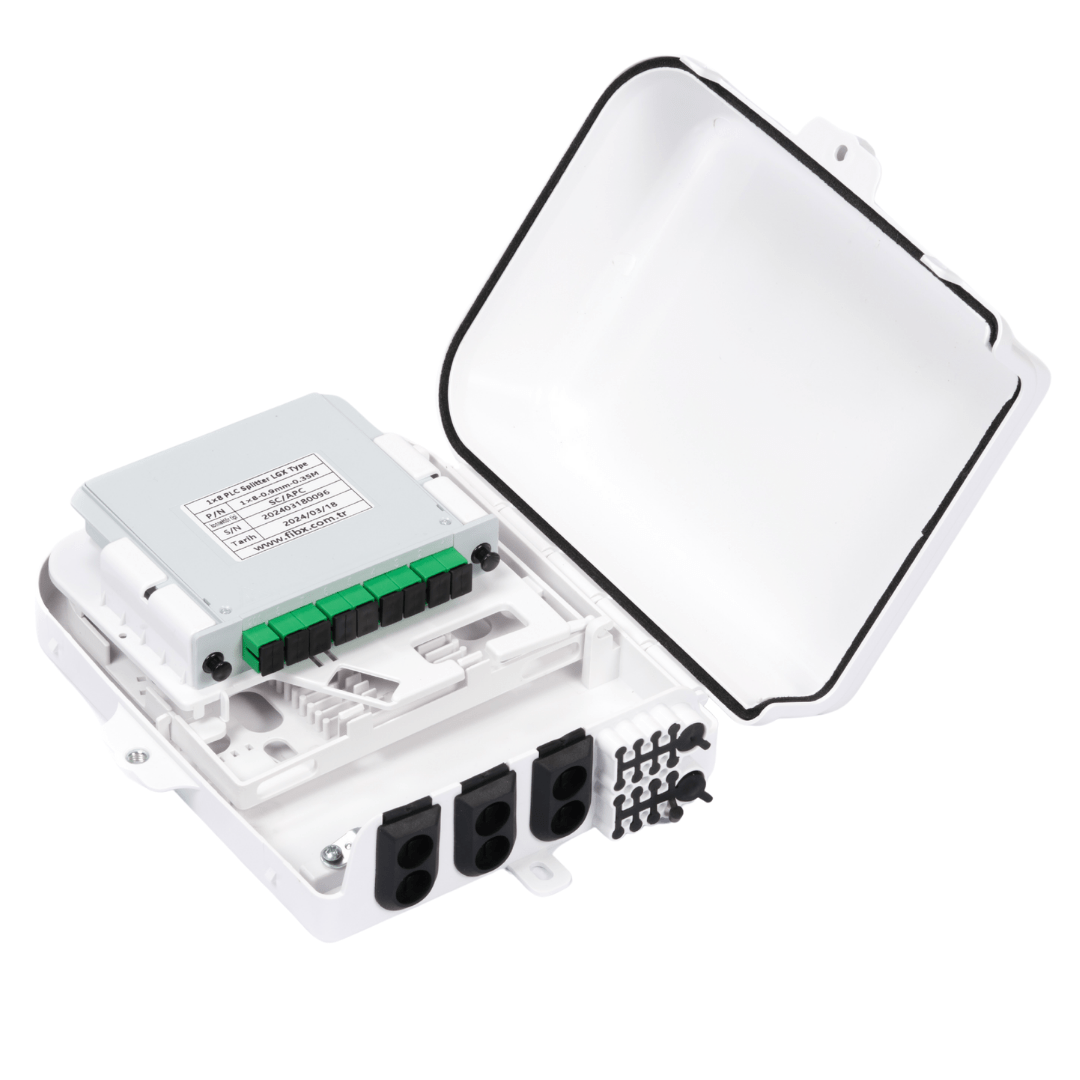

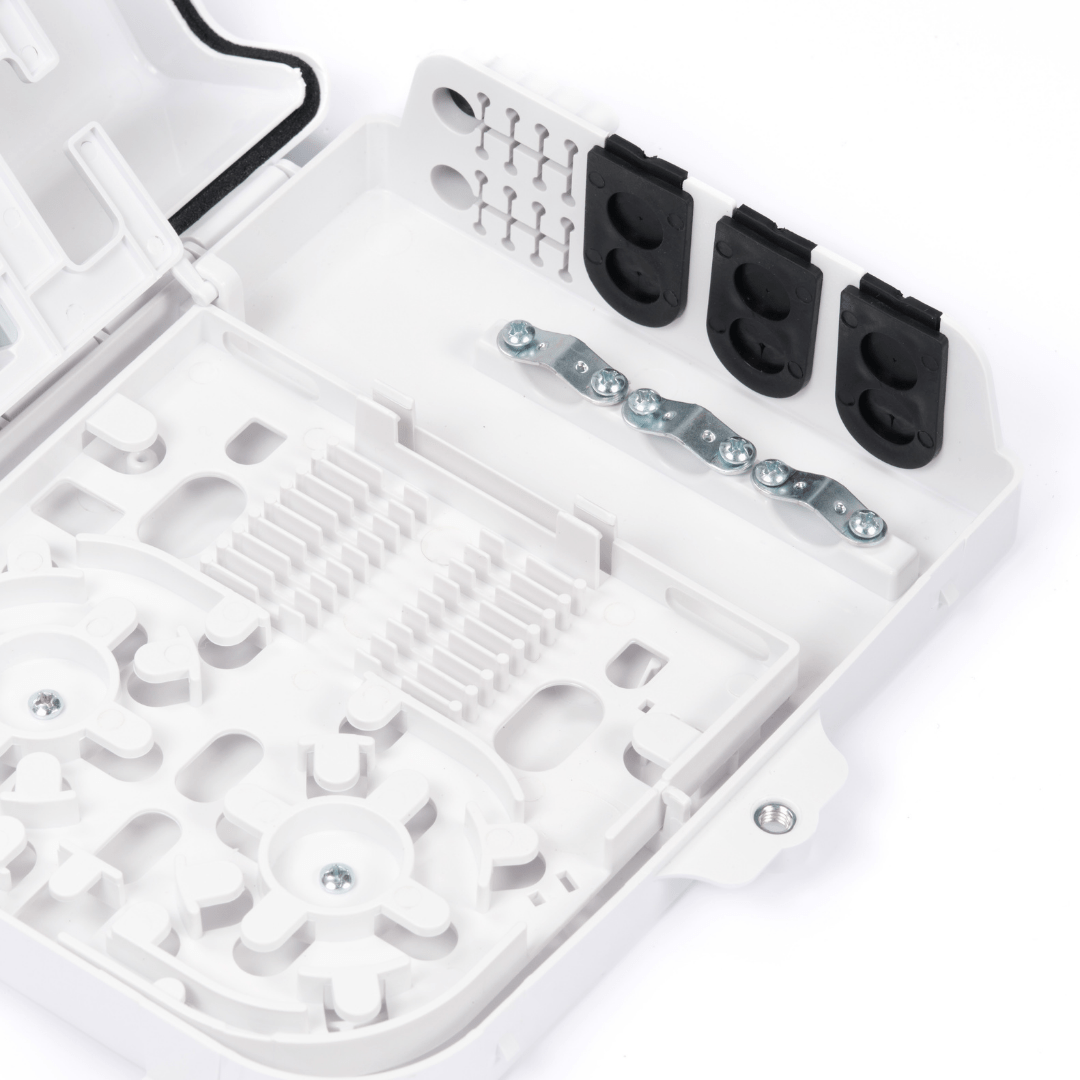

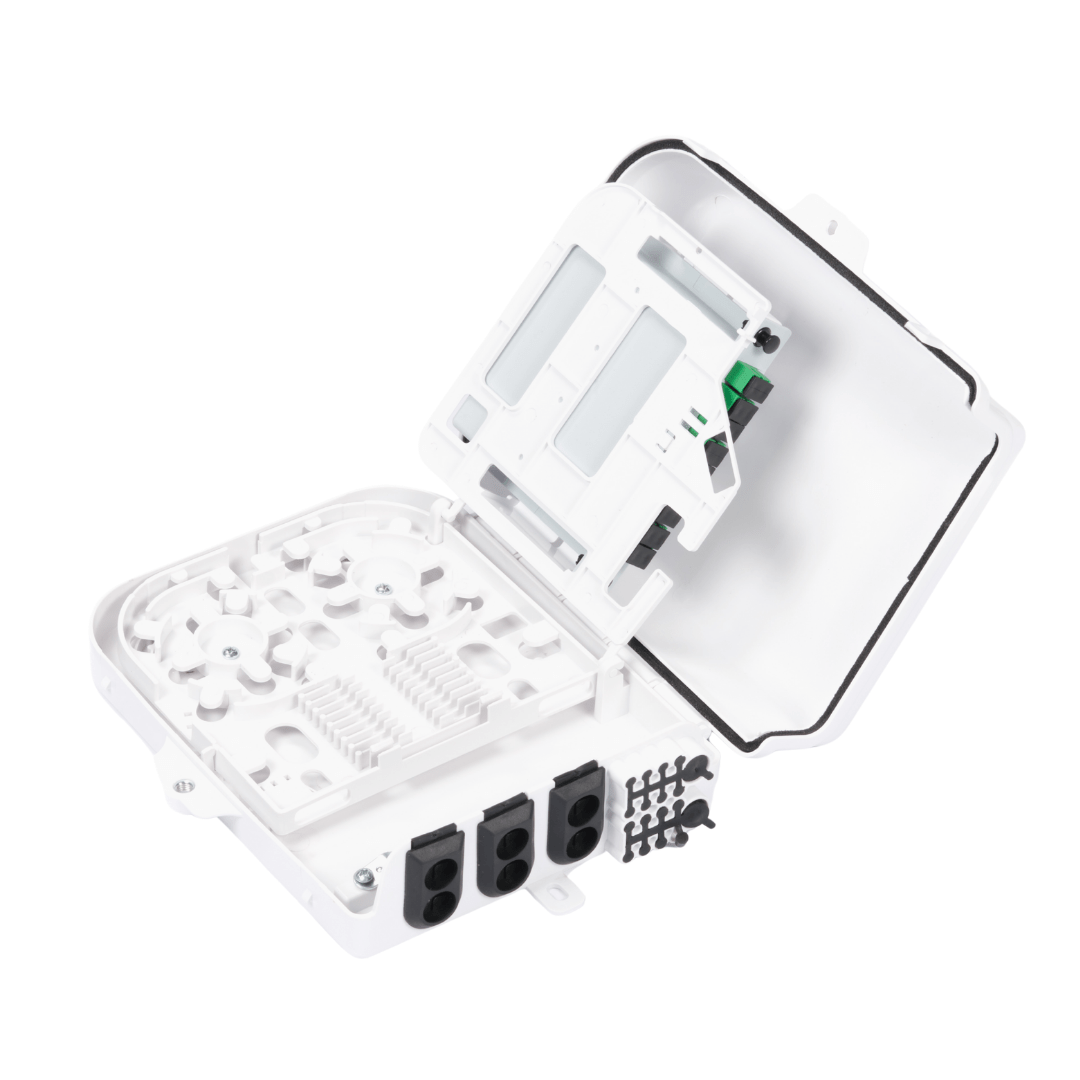

8-Port Tray-Type Termination Box
A 8-port fiber box compatible with tray-type splitters for organized field connections.
Unit priceExcluding VAT
322,75 TL+ 20% VAT
Total including VAT387,30 TL
- Termination capacity
- 8 ports
- Application
- FTTx - Wall/pole mounting
- Cable inlet
- 1 inlet, max Ø14 mm
- Cable outlets
- 8 cable outlets, max Ø3 mm
Request a quote based on quantity, configuration and delivery needs.
Technical specifications
| Product code | FX-OFDK-008-K |
|---|---|
| Termination capacity | 8 ports |
| Application | FTTx - Wall/pole mounting |
| Cable inlet | 1 inlet, max Ø14 mm |
| Cable outlets | 8 cable outlets, max Ø3 mm |
| Fiber tray | 8 fibers / tray |
| Housing material | ABS/ABS+PC |
| PLC Splitter | 2×1x4 veya 1×1x8 Kaset Tipi Splitter |
| IP rating | IP65 |
| Color | Ice white |
| Capacity | 8 SC/PC adapters + pigtails or tray-type splitter |
| Dimensions (L × W × H) | 180 x 220 x 80 mm |
| Connector type | SC Simplex, LC Duplex |
| Operating temperature | -40/+70 °C |
Key features
- Suitable for wall and pole installation.
- Organized placement for fibers and connection points.
- Adapters and splitters are selected for the project’s needs.
