Termination & Splice Boxes
Product code: FX-OFDK-032-H

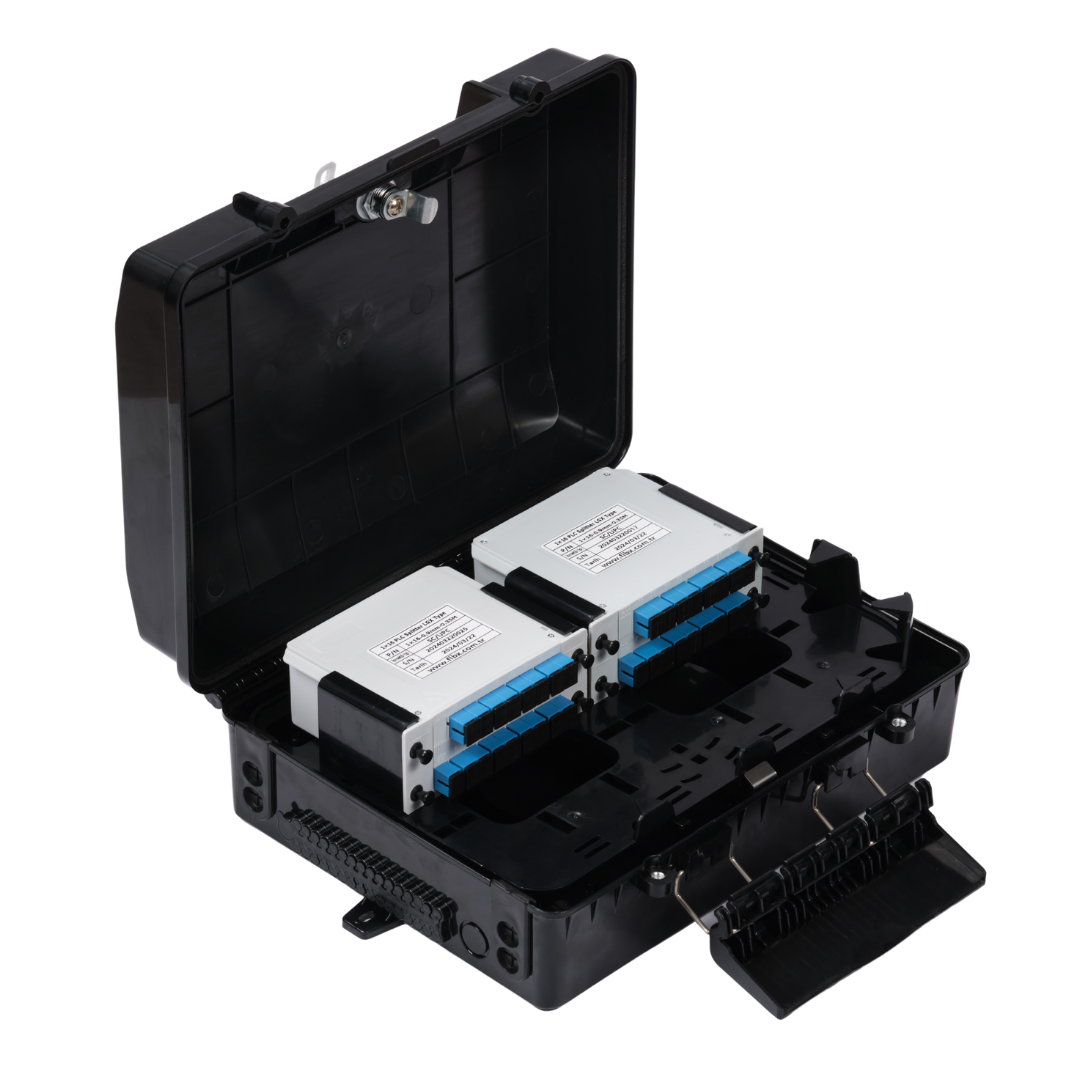

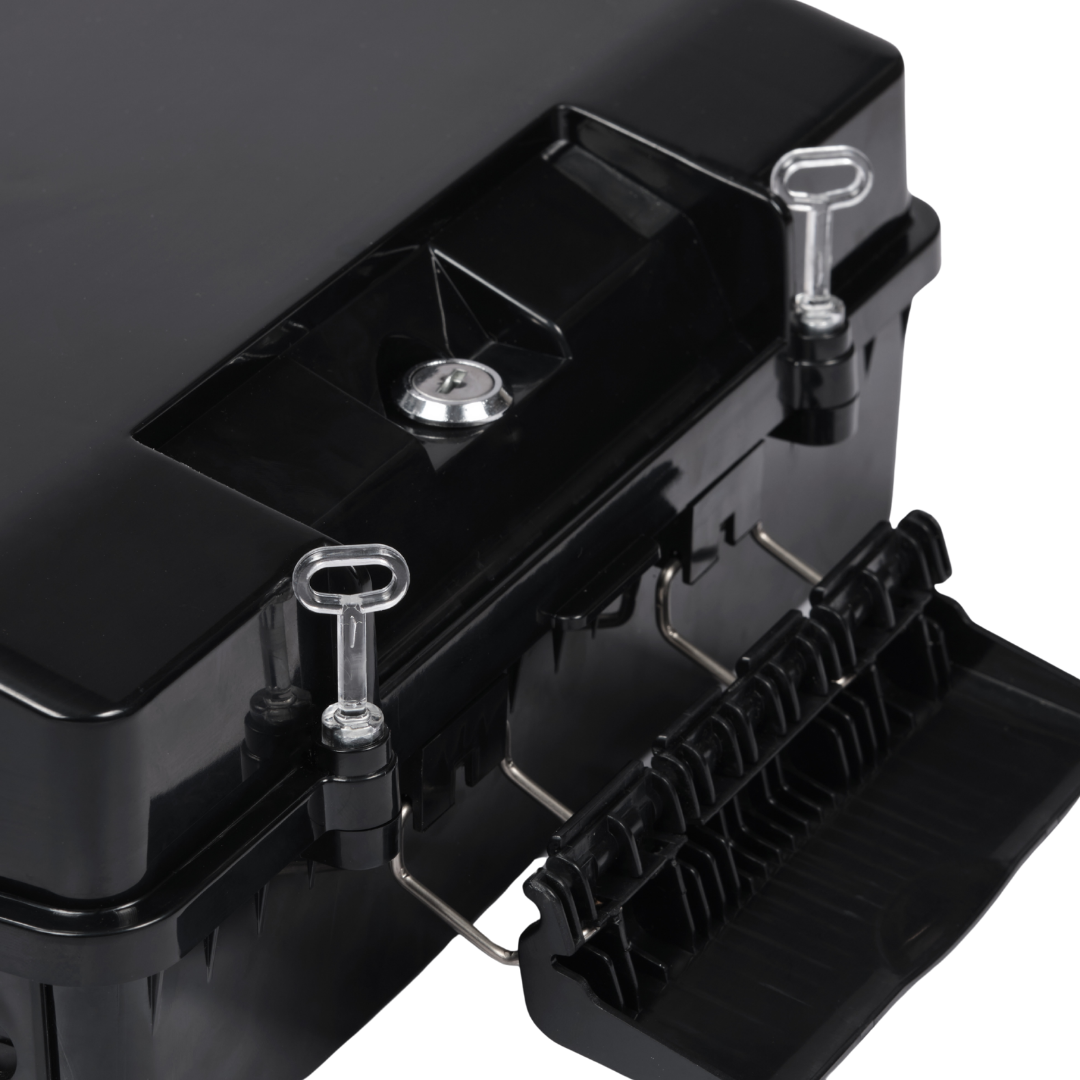

32-Port Hinged Distribution Box
A 32-port box designed to organize and protect fiber connections in FTTH/FTTx networks.
Unit priceExcluding VAT
861,50 TL+ 20% VAT
Total including VAT1.033,80 TL
- Termination capacity
- 32 ports
- Application
- FTTx - Wall/pole mounting
- Cable inlet
- 1 inlet, max Ø14 mm
- Cable outlets
- 32 cable outlets, max Ø3 mm
Request a quote based on quantity, configuration and delivery needs.
Technical specifications
| Product code | FX-OFDK-032-H |
|---|---|
| Termination capacity | 32 ports |
| Application | FTTx - Wall/pole mounting |
| Cable inlet | 1 inlet, max Ø14 mm |
| Cable outlets | 32 cable outlets, max Ø3 mm |
| Fiber tray | 32 fibers / tray |
| Housing material | ABS/ABS+PC |
| PLC Splitter | 2×1×16 veya 1×1×32 Kaset Tipi Splitter |
| IP rating | IP65 |
| Color | Ice white |
| Capacity | 32 SC/PC adapters + pigtails or tray-type splitter |
| Dimensions (L × W × H) | 260 × 320 × 90 mm |
| Connector type | SC Simplex, LC Duplex |
| Operating temperature | -40/+70 °C |
Key features
- Suitable for wall and pole installation.
- Organized placement for fibers and connection points.
- Adapters and splitters are selected for the project’s needs.
